Fold-up door

aluminumfabricsafety

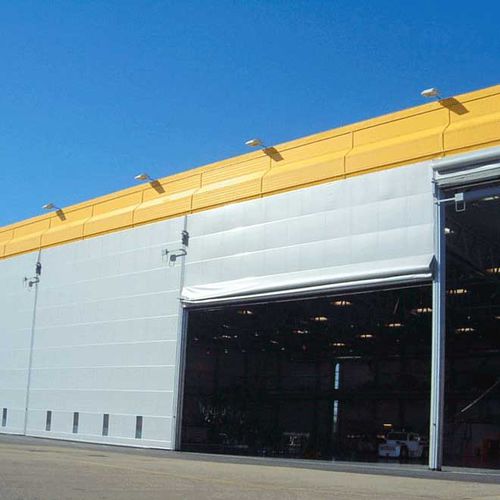

Fabric Mega Door Fabric mega door is characterized by buildings suitable for small spaces on both sides, and is mainly suitable for large working environments such as hangars, shipbuilding, steel making, mineral processing, large warehouses, and logistics channels. Product Description Technical Data: Applicable door opening: W42m*H17m Motor Power: 3.2KW-13KW Running speed: 0.15m/s Door thickness: 450-800mm Adapt to temperature: -40°C~50°C Maximum wind pressure resistance of the door: 650N/m² Control box protection level: IP54 Control external button protection level: IP64 Fabric curtain color: Blue，yello，grey，red，white 1.Surface finished:The door surface is polyester-coated polyester fiber cloth with a variety of color styles and high tensile strength. 2.Frame:The door frame is made of steel beam, the strength meets the application environment, usually choose Q235. 3.Anti-drop device:are made of 45 quality carbon structural steel, and heat treatment. 4.Belt:The lifting belt can be selected from strong fiber belt or steel wire rope, the safety factor is 6-10. 5.Guid rail:The guide rail is a combination structure of aluminum alloy profiles and steel frames. 6. The electrical components use high quality and reliable operation of brand devices. 7. Motor:The door opener uses a special lifting motor, SEW motor, Germany’s Demag, etc. 8.Movable colum:Increased the maximum size limit.
