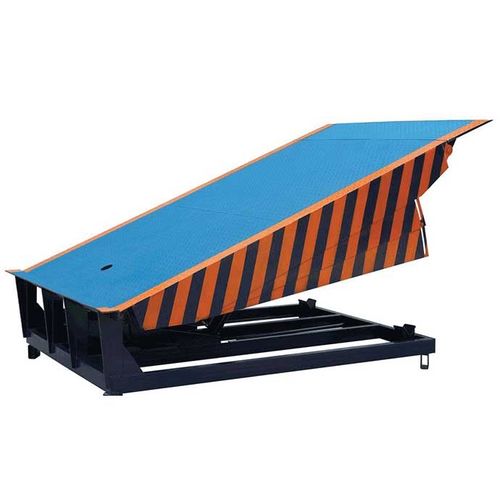

Hydraulic dock leveler

with articulated lip

Dock Leveler Dock leveler is widely used for docks, platforms, warehouses, etc., and the height adjustment can realize the seamless docking of the platform and trucks. The forklift can directly enter the truck through it. Carry out loading and unloading operations. Product Description Power supply: 1-phase 220±10%V,50/60HZ, or 3-380V±10%V,50/60HZ Load capacity: 6000KG/10000KG/15000KG Adjusting scope：-300mm to +350mm Power of motor：0.75KW-2.2KW Standard size：2500*2000*500 （can be customized） Range of travel: - +400mm -300mm Lip size: 400mm Installation: 1.The overall assembly can bear 120% load of standard nominal load capacity. Under static pressure of 24 hours, the deformation is within 3mm. And after pressure released , the deformation will recover. 2.The high-strength “U”-shaped beam design ensures high load and long-term operation without deformation. 3.Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove milling to make it anti-skid. 4.Hinge and Shaft , are Super-High-Temperature heat treated, to reduce its deformation 5.Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high frequency because of very low work temperature of oil. High standard seal avoids oil leaking. 6.Surface treatment：Coated with epoxy resin paint, very durable and high anti-corrosive. 7.Anti-rolling skirt for safer maintenance Anti-rolling skirts are provided on both sides to prevent accidental injury from reaching the platform. There is a support rod that ensures that maintenance personnel enter the docking bridge for maintenance.
