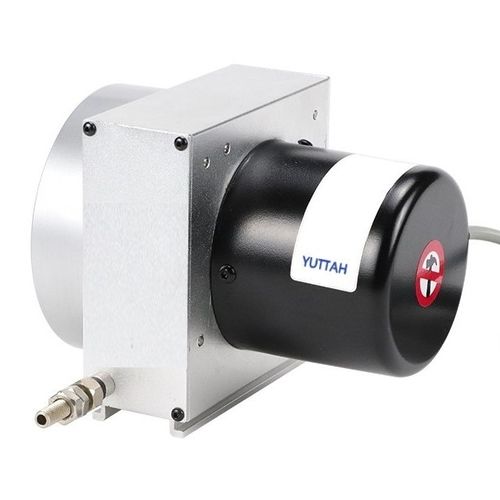

Linear position sensor DSW10

non-contactpotentiometeranalog

The cable extension position sensor DSW10 is developed for linear position measurement in industrial applications. The sensor is an agile and a practical solution for many industrial applications. Technology – High-precision linear position sensor – Cable extension sensor technology – Robust stainless steel wire – Available with Analog and Digital outputs – Easy mounting and direct application Specifications – Output Options: Analog Output: POT: 0 – 5 kΩ, 0 – 10 kΩ Current: 4 – 20 mA (2-wire) Current: 4 – 20 mA (3-Wire) Digital Output: RS485 Modbus Other Outputs: On request – Resolution: 0.04% F.S – Excitation Current: max. 30 mA – Sensing device: Precision potentiometer – Protection Class: IP65 – Housing: Anodized Aluminum – Mounting: M6 – EMC: DIN EN 61326-1:2013 ADVANTAGES – High precision – Compact and robust – High resistance against shocks and vibrations – High protection class – Long lifetime – Easy mounting and direct application – Design flexibility – Available with different interface options Applications – Industrial Applications – Industrial Vehicles – Communal Vehicles – Material Handling – Forest and Agriculture Machines – Heavy duty applications – Power and Energy – Hydraulic cylinders – Pneumatic cylinders – Liquid/Water level – Other Applications
