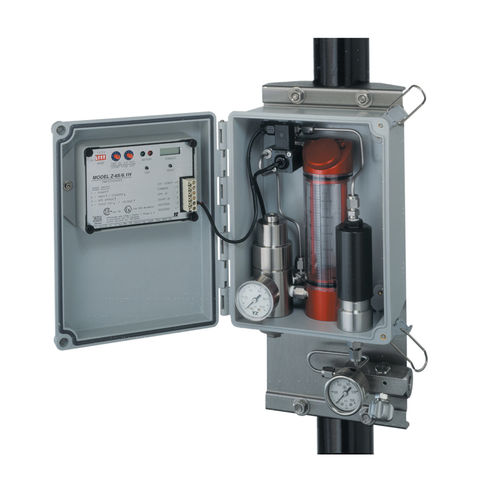

Oil lubrication system Cyclone 4400

The Cyclone Meter Lubrication System. Capable of accepting pulses directly from a meter, index pulser, electronic corrector, or flow computer, the Cyclone can operate in Proportional-to-flow or time-based injection modes. Further refinement of the time based mode adds the capability of control from the YZ DPS-2 — Differential Pressure Switch allowing lubricant injection only when flow occurs in the pipeline. • Provides systematic lubrication • Versatile controller operates time-based or flow-based • Durable NEMA 4X fiberglass reinforced polyester enclosed to protect from the elements • On board LCD stroke & LED battery indicator • Adjustable filter/regulator • On board 6 oz. oil reservoir • Long life potted electronics • Intrinsically safe for Class I, Group C, D; FM approved, and CSA & Cenelec Certified • Convenient termination block for pulse and differential pressure switch input • C44 injection pump • Fixed displacement • 0-1500 psi operating range • 316 SS construction • Z-65 Controller • 2-year battery life • On board 6-digit LCD counter • Diagnostic test functions. • Filter/Regulator
