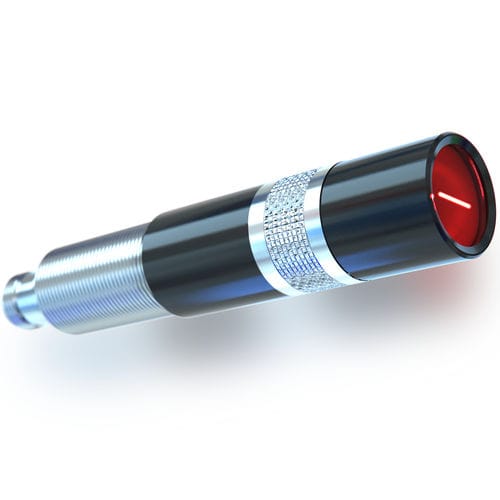

Pulsed laser module ZM18solid-stateinfraredred
Add to favorites
Compare this product
Characteristics
- Operational mode
- pulsed
- Technology
- solid-state
- Spectrum
- infrared, red, green, blue
- Applications
- positioning
- Other characteristics
- diode
- Power
0.12 W, 0.16 W
- Wavelength
Min.: 405 nm
Max.: 830 nm
Description
The perfect Allrounder
The ZM18 product family is used in image processing systems for lighting or as a positioning laser for alignment tasks. In particular, functions like the easy-focus feature on the optical head, modulation, and the storage of operating parameters such as temperature or operating hours are all useful features of this laser. With a Ø 20mm laser head and an M18 thread, they are easy to attach and can be used in a variety of ways.
These laser modules are used to project dots, Gaussian/homogeneous lines, multilines, dot matrices, and crosses in image processing. The ZM18 laser is available with blue, green, red, and infrared wavelength, offers simple focusing mechanics, and output power up to 200mW with full water and dust protection.
