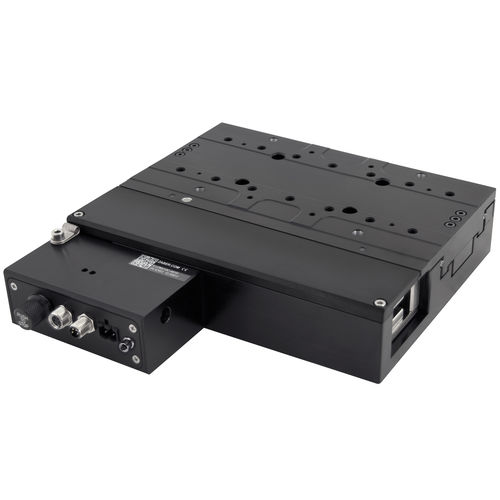

Stage with integrated controller X-LDM-AElinearlinear motor-driven2-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- linear motor-driven
- Number of axes
- 2-axis, 1-axis, multi-axis
- Other characteristics
- precision, compact, miniature, measurement, with built-in encoder, low-profile, with integrated controller, with motor encoder
- Stroke
Max.: 210 mm
(8.268 in)Min.: 60 mm
(2.362 in)- Speed
Max.: 1,200 mm/s
Min.: 0 mm/s
Description
Zaber's X-LDM-AE Series devices are computer-controlled, motorized linear stages suited for applications demanding outstanding precision, throughput, and reliability. A centrally mounted linear encoder results in 1 µm position accuracy and consistent movement steps down to 25 nm. X-LDM-AE devices feature high efficiency ironless linear motors, providing high speed and acceleration, while minimizing heat generation to improve repeatability. Both the drive and encoder are non-contact, and have no moving cables, resulting in a high lifetime system.
