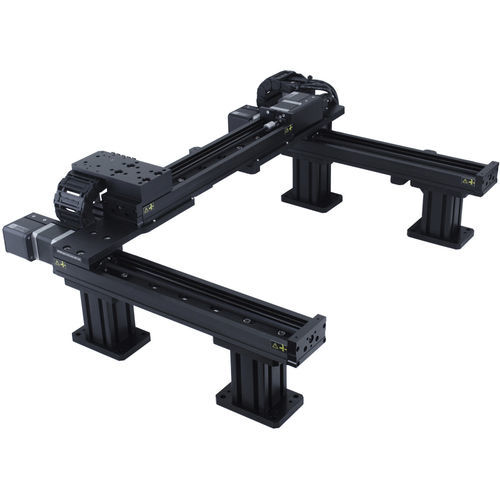

Gantry positioning system LRTXYindustrial
Add to favorites
Compare this product
Characteristics
- Number of axes
- XY
- Features
- gantry
- Applications
- industrial
- Repeatability
Max.: 12 µm
Min.: 6 µm
- Load
Max.: 100 kg
(220.46 lb)Min.: 0 kg
(0 lb)- Stroke
Max.: 1,500 mm
(59.06 in)Min.: 500 mm
(19.69 in)- Speed
Max.: 700 mm/s
Min.: 0 mm/s
Description
A Zaber gantry kit comes with everything you need to build a customized XY gantry system or XYZ gantry system. These gantry systems feature coordinated multi-axis motion, plug-and-play operation, easy integration with end-effector options, and built-in IO and E-Stop capabilities.
An intuitive ASCII interface allows the user to easily communicate with the gantry systems using our free software, either Zaber Motion Library with APIs for several popular languages or Zaber Launcher. Third-party terminal programs that can communicate over a serial port can also be used.
