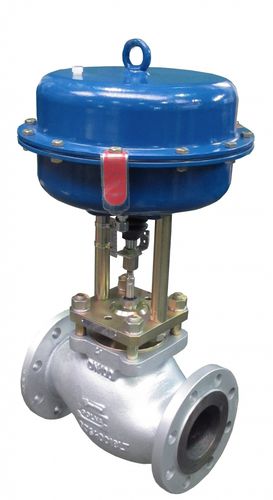

Globe valve Z

pneumaticflow controlfor chemical products

Applied in automatic and remote control installations as flow control elements to adjust flow of liquids and gases. Wide range of material and design versions make the valves widely sought-after in chemical industry, heat and power generation industry, paper industry, food industry, metallurgy, coal mining etc. In Europe they are known as BR11. We can adjust the control valve to match your individual needs. range of nominal sizes from DN15 to DN250 for pressure values PN10 to CL300 various materials of valve body cast and internal parts, adapted to specific working conditions wide range of flow ratios and control characteristics reduction in aggressive and toxic media emissions to the environment through application of bellow seal bonnets or bonnet packings meeting the requirements of TA – LUFT easy assembly and dismantling of valve internal parts for maintenance and service high durability and reliability due to application of top-class materials and surface improvement processes (burnishing, stelliting, heat treatment, CrN coatings) possibility of matching with reversible action P/R (column) multi-spring actuators and changing the spring range with no extra parts (keeping the number of springs) possibility of fitting actuators with top drive possibility of performing diagnostics of “valve-actuator” system due to application of smart electro-pneumatic positioners high tightness of closure due to application of soft valve seats (with PTFE seals in the whole range of flows and characteristics, for valve plugs, balanced and unbalanced)
