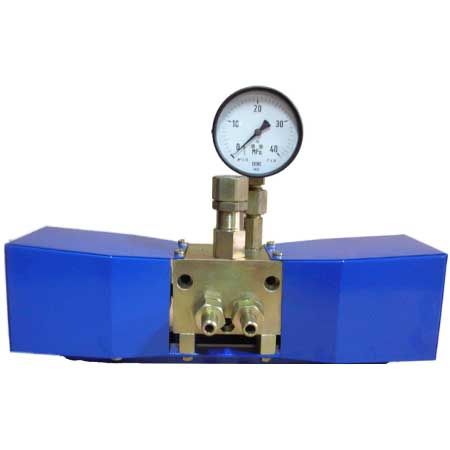

Lubricant distributor ER

grease

The distributor is designed to change the direction of lubricant flow in the two-way central lubrication system. It is used in the lubrication system (in close proximity to the pump), in which the pump does not have a distributor. Permissible flow rate - approx. 1 dm3/min. Nominal pressure - 20 MPa lub 32 MPa Overdrive time - approx. 0.5 seconds Starting/holding power - 3500/270 VA Rated voltage at a frequency of 50 Hz - 400 V lub 500 V Ambient temperature - -10 ... 60°C Weight - 25 kg * - Customized to your needs The distributor is designed to change the direction of lubricant flow in the two-way central lubrication system. It is used in the lubrication system (in close proximity to the pump), in which the pump does not have a distributor. The distributor is made up of the following assemblies and parts: slide distributor equipped with an overflow valve and pressure gauge with pulsation dampener, two solenoid valves, the jumpers of which are connected to the slider of the distributor and the core housing to the distributor body by means of brackets, a mounting plate connected to the distributor body, four simple switches for connecting grease supply and discharge lines.
