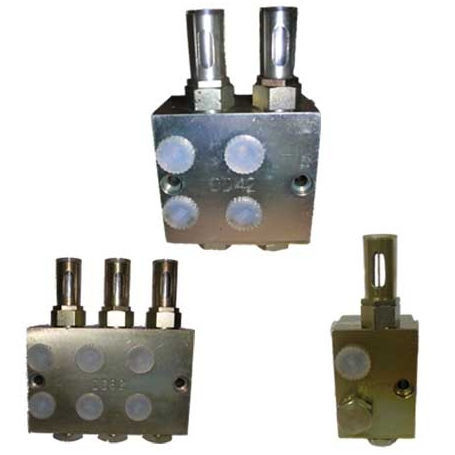

Grease distributor DD

Two-way feeders (dosing distributors) are designed to feed certain portions of lubricant to the lubrication points in machines and devices. They are component parts of two-way force feed lubrication systems. Number of grease outlets - 1, 2 ,3 ,4 or 6 Max. capacity per outlet - 2, 4 or 8 cm3/cycle Nominal pressure - 32 MPa Min. response pressure - 1 MPa Types of lubricants administered - plastic lubricants and oils Ambient temperature - -10 ... 60°C wo-way feeders (dosing distributors) are designed to feed certain portions of lubricant to the lubrication points in machines and devices. They are component parts of two-way force feed lubrication systems. The dispenser consists of the following parts and assemblies: body, pistons connected with shafts by means of joints, sliders of the distributor and bodies of capacity regulators with seals. In the regulators’ bodies, there are longitudinal holes for visual inspection of the dispenser’s operation, and in the dispenser’s body there are holes ended with threaded sockets M16 x 1.5, through which the grease is fed to the reception points.
