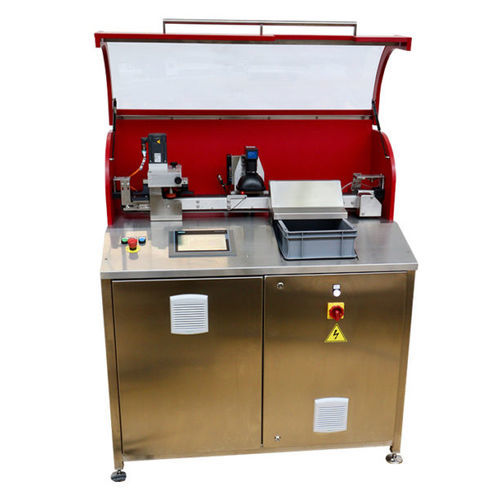

Optical inspection machine ZC-PRISM

for the beverage industrydefectsorting

The Zalkin ZC-PRISM offers multiple detection capabilities to help increase line efficiencies. The new Zalkin Pre-Inspection & Sorting Module has been developed for high speed detection and control of defective caps. The module can be integrated on new lines or retrofitted to existing lines. The ZC-Prism is ideal for multiple industries and applications using flat caps. ZC-PRISM Closure Inspection & Rejection Module • Designed for flat plastic caps • Up to 2,000 cpm (120,000 cph) • Integrated in Zalkin closure delivery system (between cap orienter & capper or cap orienter & buffer) • Capable of inspection of multiple defects and rejection of defective closures • Full control with on board PLC and HMI • Increased line efficiencies • Reduced product and packaging waste • Robust and easy-to-maintain design Integrated in Zalkin closure delivery system between cap orienter & capper or cap orienter & buffer Inspection: • Single camera station (oriented in vertical and perpendicular or transversal) • Cap defect detection includes: • mis-shaped caps • deformed caps • cap color variation • upside down caps • missing tamper band • deformed plug seal • contaminants
