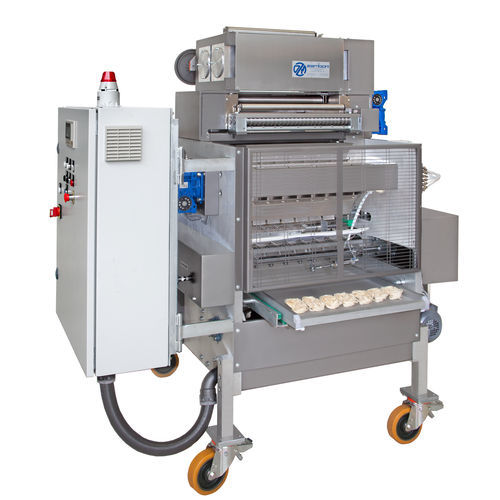

Combined pasta machine with sheeter MT8/600

with extruder

Twisting machine for the production of "8-shaped" curls from laminated or extruded pasta, featuring: • Trays width 600mm. • 510 or 540mm wide curtains or dough-sheets. • Calibrating unit consisting of a couple of calibrating rollers diam. 180mm. • Distribution unit to separate pasta strings according to curl dimensions. • Curl forming unit suitable to collect pasta strings from distributor, to fold them according to the selected eight-shape and to place them on trays by means of appropriate movements; said movements are adjustable in order to obtain curls with different dimensions. • Microprocessor for: machine operation, production data processing, machine data programming and display, job control, proportional linking among speeds under different job conditions, parameters storage under one out of 30 available shapes. • Keyboard + monitor to set and store operation parameters according to shapes, and to display possible alarms together with a short description for immediate intervention. • Inverter for motor operation. • Trays feed unit with motor for synchronized trays progress according to curl forming process, suitable to operate trays change by discharging the loaded tray and drawing an empty one. • Trays store suitable to automatically draw, by means of a chain with pushers, a new tray when the previous one has been loaded. • Example of line with trays storage, twisting machine and pre-dryer:
