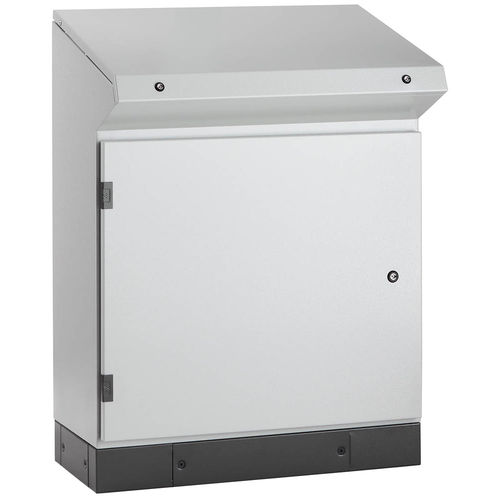

Control console LM seriesoperatorIP55monobloc
Add to favorites
Compare this product
Characteristics
- Options
- control, operator, IP55, monobloc
- Material
- sheet steel
Description
2 OPTIONS AVAILABLE:
Internal plate – plinth
Internal plate – no plinth
Structure:
1,5 mm thick steel sheet welded monobloc structure.
Internal plate:
2,0 mm thick galvanised steel sheet (Sendzimir), non-adjustable.
Cable entry flange:
1,5 mm thick steel sheet; it consists in 2 parts; with cable-tie neoprene gasket.
Solid door:
1,5 mm thick; polyurethane sealing gasket; pre-drilled internal elements for component installation; metal locking system with 3 mm double-comb tool insert; other configurations are available. 100° standard opening with reversible left hinges. Hinged door from W=1200 mm.
Desk door:
14° tilt, hinges on top part and open position retainer; pre-drilled internal supports for component installation; front locking system for 3 mm double-comb tool; other configurations are available.
Painting:
Thermosetting powders.
Material:
1,5 mm thick carbon steel sheet.
