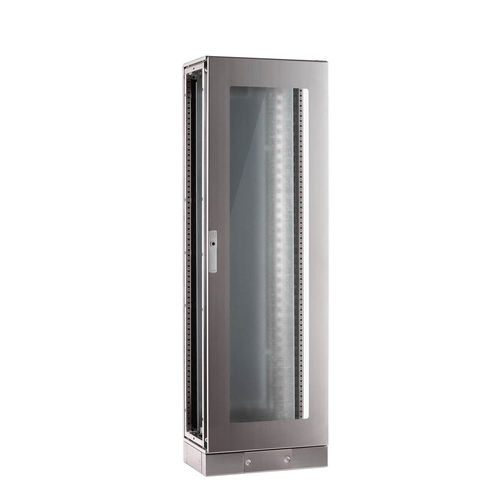

Electric cabinet with post DRCP-ASP series

aluminumIK10IP66

THE EQUIPMENT INCLUDES: GLASS DOOR – BACK PANEL Structure: 1,5 mm thick stainless-steel drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and base fixed to structure. Side and back panels: 1,5 mm thick stainless-steel; polyurethane sealing gasket; fixed to structure. Internal plate: 2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth. Transparent door: Same characteristics as solid door, but it is provided with a tempered glass porthole. BY SEPARATED ORDERING: 1,5 mm thick stainless-steel internal door. Cable entry flange: 1,5 mm stainless-steel; it consists in 2 or 3 parts, with neoprene cable-tie gasket Earthing: M6 pins to be welded on structure, doors and panels Finish: Fine scotch brite medium satin, 240 grit. Material: 1,5/1,8 mm thick AISI 304 stainless-steel. In AISI 316 stainless-steel on request.
