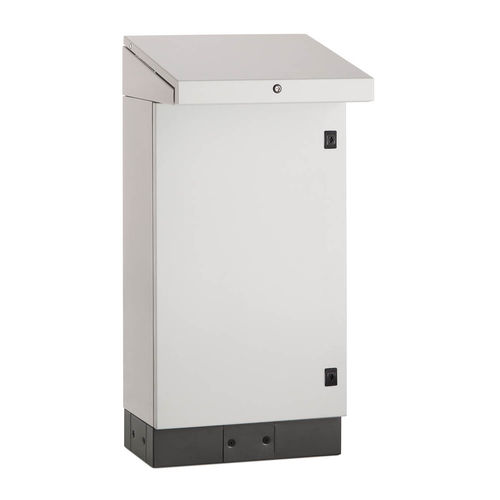

IP55 console LVD93 seriesmonoblocmodularcontrol
Add to favorites
Compare this product
Characteristics
- Options
- IP55, monobloc, modular, control
- Material
- sheet steel, carbon steel
Description
THE EQUIPMENT INCLUDES: INTERNAL PLATE H100 mm PLINTH
Base:
1,5mm thick steel sheet welded monobloc structure.
Internal plate:
2,0 mm thick galvanised steel sheet (Sendzimir), non-adjustable.
Cable entry flange:
Flat, fixed from the inside, with gasket.
Solid door:
1,5 mm thick; polyurethane sealing gasket; pre-drilled
internal elements for component installation; pvc locking system with 3 mm double-comb tool insert; other configurations are available. 120° standard opening with reversible left hinges.
Desk:
12° tilt welded monobloc structure; 1,5 mm steel sheet; top-hinges door and opening position retainer; central locking system with 3 mm double-comb tool insert; oth
configurations are available. To be fixed to and in connection with the base.
Painting:
Thermosetting powders.
