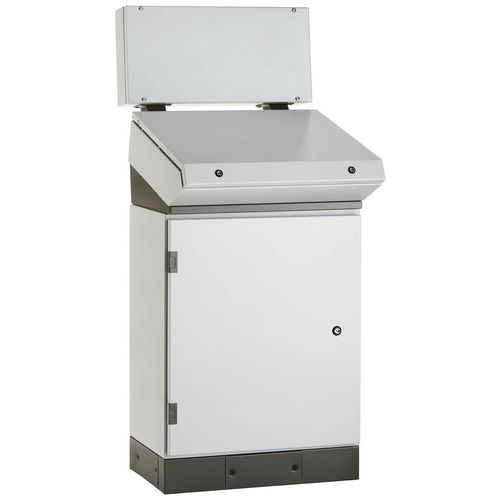

Control console LVEIP55monoblocHMI
Add to favorites
Compare this product
Characteristics
- Options
- control, IP55, monobloc, HMI, modular
- Material
- sheet steel, carbon steel
Description
Base:
1,5 mm thick steel sheet welded monobloc structure.
Internal plate:
2,0 mm thick galvanised steel sheet (Sendzimir), non-adjustable.
Cable entry flange:
1,5 mm thick steel sheet; it consists in 2 parts; with cable-tie neoprene gasket.
Solid door:
1,5 mm thick; polyurethane sealing gasket; pre-drilled internal elements for component installation; metal locking system with 3 mm double-comb tool insert; other configurations are available. 100° standard opening with reversible left hinges. Hinged door from W=1200 mm.
Painting:
Thermosetting powders.
Material:
1,5 mm thick carbon steel sheet.
Standard colours:
RAL7035 textured RAL7032 on request Plinth: RAL7009 textured
