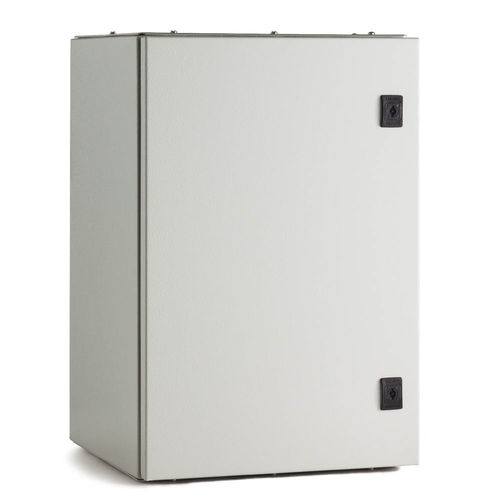

Wall-mount box D01 seriesrectangularcarbon steelgalvanised steel
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- carbon steel, galvanised steel
- Application
- for electrical installation
- Protection level
- IK 10, IP55
- Other characteristics
- empty, with hinged door, single door, monobloc
- Width
400 mm, 500 mm, 600 mm, 800 mm
(15.7 in, 19.7 in, 23.6 in, 31.5 in)- Height
Max.: 1,414 mm
(55.7 in)Min.: 614 mm
(24.2 in)- Depth
400 mm
(15.75 in)
Description
Casing:
1,5 mm thick steel; welded monobloc structure.
Internal Plate:
2 mm thick galvanised steel sheet (Sendzimir), not adjustable.
Cable Entry:
Flange both on top and bottom sections with gasket.
Solid door:
1,5 mm thickness; polyurethane sealing gasket; Pre-drilled internal supports for elements mounting (from H606); pvc locking systems with 3 mm double-comb tool insert, other configurations are available. 120° standard opening with reversible left hinges.
Earthing:
M6 pins to be welded on structure and doors.
Painting:
Thermosetting powders
