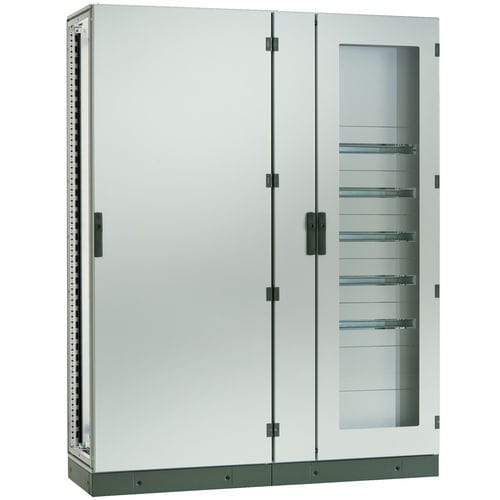

Distribution electric cabinet KX DPC serieswith postIP66NEMA 12
Add to favorites
Compare this product
Characteristics
- Type
- distribution
- Mounting
- with post
- Other characteristics
- IP66, NEMA 12, IK10, NEMA
- Width
400 mm, 600 mm, 800 mm, 1,000 mm
(15.7 in, 23.6 in, 31.5 in, 39.4 in)- Height
1,410 mm, 1,610 mm, 1,810 mm, 2,010 mm, 2,210 mm
(55.5 in, 63.4 in, 71.3 in, 79.1 in, 87 in)- Depth
400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
(16 in, 20 in, 24 in, 31 in, 39 in)
Description
THE EQUIPMENT INCLUDES: SOLID DOOR – INTERNAL PLATE – BACK PANEL
Structure:
1,5 mm thick steel sheet drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and plinth fixed to structure.
Side and back panels:
1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure.
Internal plate:
2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth.
NB 200 mm width has no internal plate
Solid door:
1,8 mm thick steel sheet; polyurethane sealing gasket; 20×20 mm pre-drilled tubular frame. 100° standard opening with reversible right hinges. Standard central locking systems with double-comb tool insert and 4 anchor points. Other configurations are available.
Cable entry flange:
1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket.
Earthing:
M6 pins to be welded on structure, doors and panels.
Painting:
Thermosetting powders.
Material:
1,5/1,8 mm thick carbon steel sheet.
