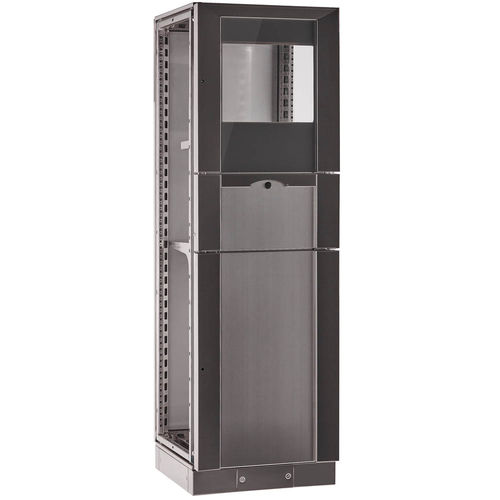

PC cabinet DRC/LAN-I series

Structure: 1,5 mm stainless- steel sheet drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and base fixed to structure. Side and back panels: 1,5 mm thick stainless-steel; polyurethane sealing gasket; fixed to structure. Internal plate: BY SEPARATED ORDERING, PARTIAL OR COMPLETE. Cable entry flange: 1,5 mm stainless-steel; it consists in 2 parts, with neoprene cable-tie gasket. Earthing: M6 pins to be welded on structure, doors and panels. Finish: Fine scotch brite medium satin, 240 grit. Material: 1,5 mm thick AISI 304 stainless-steel. In AISI 316 stainless-steel on request.
