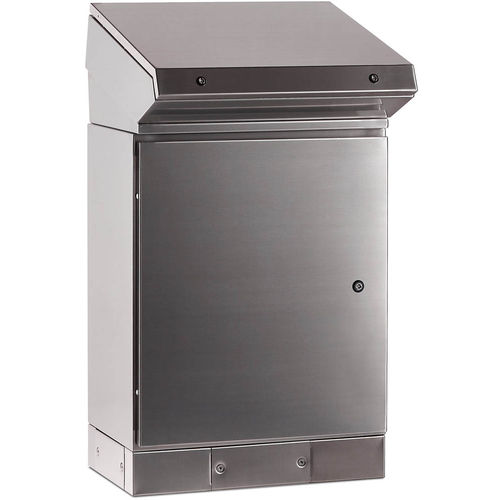

Control console LVE-A series

casing mountIP55stainless steel

LVE-A: BASE – DESK – TOP PLATE Base: 1,5 mm thick stainless-stee welded monobloc structure. Internal plate: 2,0 mm thick galvanised steel sheet (Sendzimir), non-adjustable. Cable entry flange: 1,5mm thick stainless-steel; it consist in two parts; with cable-tie neoprene gasket. Solid door: 1,5 mm thick stainless-steel; polyurethane sealing gasket; pre-drilled internal elements for component installation; metal locking system with 3 mm double-comb tool insert; other configurations are available. 110° standard opening with reversible left hinges. Hinged door from W1200 mm. Desk: 14° tilt welded monobloc structure; 1,5 mm stainlesssteel; top-hinges door and opening position retainer; central locking system with 3 mm double-comb tool insert; other configurations are available. To be fixed to and in connection with the base. Finish: Fine scotch brite medium satin, 240 grit. Material: 1,5 mm thick AISI 304 stainless-steel. In AISI 316 stainless-steel on request.
