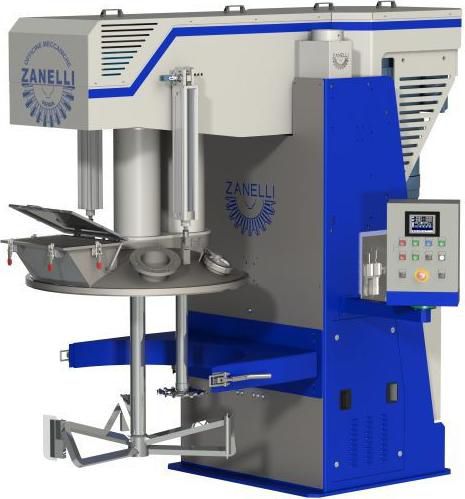

Double-shaft disperser Mercury line series

vertical-axisturbobatch

Main transmission mixing shaft Main electric motor with frequency converter (inverter). Gear box with parallel axes. The power transmission between the electric motor and the gearbox occurs by means of pulleys and belts with profiles and suitable dimensions. Main transmission dispersing shaft Main electric motor with frequency converter (inverter). The power transmission between the electric motor and the mixing shaft occurs by means of pulleys and belts with profiles and suitable dimensions. Auxiliary Hydraulic Power Pack Hydraulic power pack positioned in the machine structure, complete with electric motor, coupling strainer, coupling, pump, solenoid valves, oil level, vent, drain cock and safety devices. The power pack actuates the hydraulic cylinder, complete with safety lock valve. The cylinder is placed in the center of the two fixed columns and is suitable to lift up the entire mixing group. Mixing tools The dispersing shaft, in AISI 304 stainless steel, is balanced with adequate taper on the edge, in order to ensure the elimination of vibrations even in the most critical stages of processing and at high speed rates. The change in speed of the dispersing shaft is obtained by means of an electronic system complete with frequency drive (inverter). The advantage is that the operator has a range of speeds available but especially there is a high torque even at medium/low speeds. Continuously variable speed. The dispersion tool, supplied with the machine, is a toothed impeller with an easy fixing to the shaft, easy to replace.
