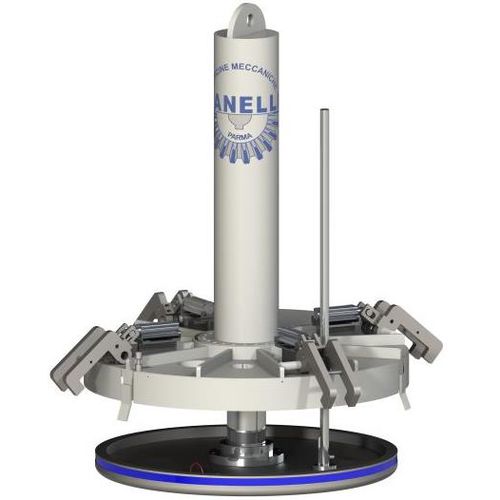

Hydraulic press PPI-M

with movable tableATEX

Hydraulic press suitable to extrude products with medium viscosity from cylindrical vessels. Upper support suitable for transportation by means of forklift or lifting hoist. The hydraulic cylinder is driven by an hydraulic power pack, positioned on the upper part of the machine complete with pneumohydraulic pumps. Hydraulic cylinder, finished with a two-components epoxy paint, complete with flange, screwed in the central part of the fixed pressing plate, and with a stem, rectified hard chromed, and with a fixing flange to the pressing plate. Pressing plate of considerable strength, worked on machine tool and built in carbon steel, coated with AISI 304 stainless steel and rounded on the bottom part in order to house a gasket. Side hooks to make the vessel integral to the press, made of very sturdy iron, finished with a two-components epoxy paint and connected with safety devices. Safety protection on the entire pressing plate circumference, made of AISI 304 stainless steel sheets. Control panel assembled on the machine.
