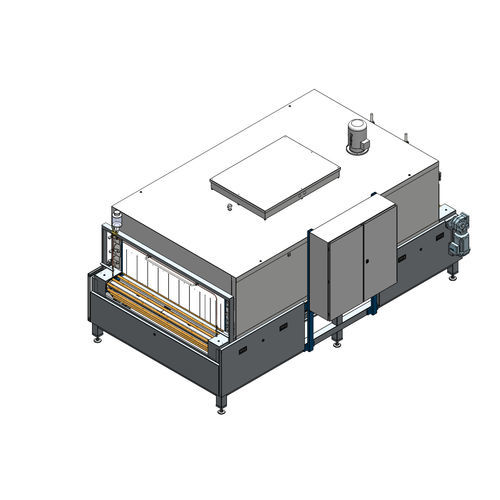

Electric shrink tunnel VT – HS

for labelsfor heat-shrink sleevesoverwrap

The professional version as a high-speed shrink tunnel enables theshrinkage of various products – even of very heavy or long products, our tunnel provides you with an excellent shrinkage result. Two separate, upper and lower heaters each enable optimal shrinkage results and the highest possible temperature accuracy (up to +/- 1 ° C in the entire tunnel chamber). • Continuously variable regulation of the conveyor belt speed by means of frequency converter • Energy-saving hot air circulation • Electronic regulation of the shrinkage temperature with wear-free solid state relay technology • Display of the setpoint and actual temperature • Removable heating coil for service purposes • Extended tunnel bonnet • Tunnel bonnet with stronger thermal insulation for energy saving • Shrink tunnel in heavy-duty design, i.e. reinforced drive of the conveyor chain with three-phase geared motor, conveyor chain with double breaking load, chain rods in reinforced design with support tube covered with silicone or glass fibre material • Adjustment of the air volume distribution at the top / side / bottom, as well as the blowing direction of the side air for optimal shrinkage results • Attached 1 m long run-out roller conveyor • Versions with higher or lower throughput speeds (below 1 m/min or up to approx. 65 m/min) • Additional heating capacity (up to 70 kW) • Process or heating ovens • Infrared ovens • Rotating support bars • Automatic chain lubricator with drip tray • Lateral pressure brushes • Automatic tracking • Weekly timer • Over-temperature monitoring • Cooling blowers • Teflon grid belt
