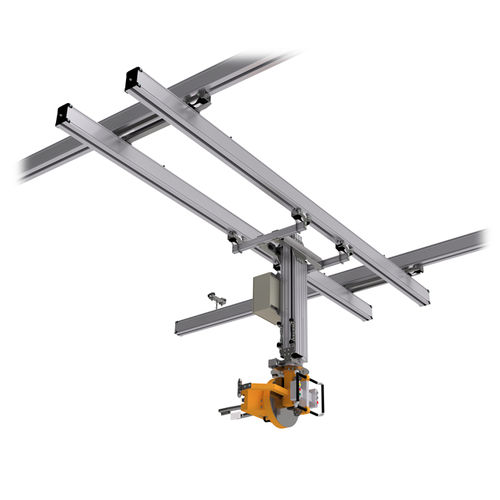

Lifting axe manipulator Z-LP series

pneumatichandlingoverhead rail-mounted

Lifting axes are usually pneumatically powered and perform a linear stroke. They are used for the rigid, off-centered guidance of the load. They allow for the loads to be comfortably and safely guided due to the direct transmission of the applied hand forces onto the load. They excel through their low dead weight and their ease of movement. The guidances consist of hardened and ground recirculating ball bearing guides in machine tool quality. These are being combined with low maintenance recirculating ball bearing guide sleds, which require low manual forces for the stroke movement To enable the handling of higher payloads of up to 1000 kg the lifting axes can also be equipped with a chain hoist. Design •ceiling-mounted movable on a suspension crane •floor-mounted in combination with a heavy duty pivot arm Control options •one, two or multiple load balancing control •up/down control with and without empty load balancing •hand force detection control •safety functions, such as gripper release •and many more Options •pneum./electr. brakes •maintenance unit •position scanning •lifting lock •travel drive in x/y axis •and many more
