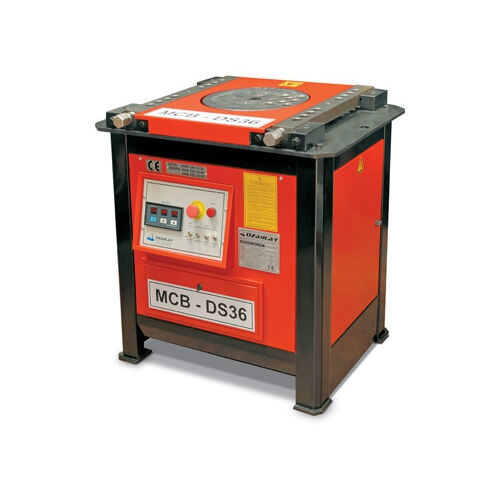

Motorized bending machine MCB DS-36
concrete reinforcementfor steel bardigital

motorized bending machine
motorized bending machine
motorized bending machine
motorized bending machine
motorized bending machine
Add to favorites
Compare this product


Characteristics

Operation
motorized
Product handled
concrete reinforcement, for steel bar
Control
digital, automatic
Overall length

87 cm
(34 in)

Overall width

70 cm
(28 in)

Total height

90 cm
(35 in)

Weight

350 kg
(772 lb)

Voltage

380 V

Total power

3 kW
(4.1 hp)

Description

Rebar bending machine is digitally controlled, and settings - programs are done on an LCD display. As the machine is digitally controlled, as well as it increases the use and work performance of the machine, it also facilitates serial bindings and saves time. Daily throughput capacity of this machine depends on the thickness of iron to be processed, the average production of stirring up is daily between 5000-6000 for the iron bars of 8, 10, 12, 14 cm thickness. As the stirring up apparatus is among the apparatus to be inserted on the machine, it does not require for an external apparatus. What makes our machine with digital control and stationary body superior to other machines producing angular steels, piles and hooks is the mode of automatic stirring up and spiral producing function. It facilitates for small rodes with single programme. Our machines are not only switch controlled but also step motor controlled (Accurate size obtaining capacity).With the emergency stop on the panel and security control on foot switch, the machine is fully controlled.
