Hydraulic hose TS7 seriesthermoplasticpolyurethanepolyester
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- polyester, polyurethane, thermoplastic
- Applications
- for high-pressure applications, conveying, brake
- Other characteristics
- braided polyester
- Inner diameter
2.1 mm, 2.2 mm, 2.5 mm
(0.083 in, 0.087 in, 0.098 in)- Outer diameter
5 mm, 5.6 mm
(0.197 in, 0.22 in)- Pressure
Max.: 1,200 bar
(17,404.529 psi)Min.: 187 bar
(2,712.206 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
HIGH PRESSURE HYDRAULIC APPLICATIONS
LIGHTWEIGHT
HIGH FLEXIBILITY
KINKING RESISTANT

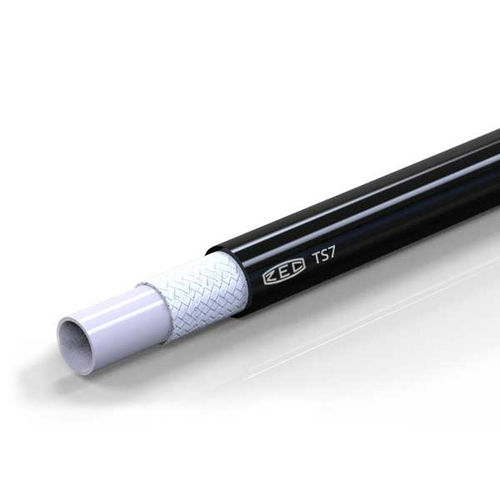

Technical-constructive features:Inner core of polyester (or polyamide* **), single braided polyester reinforcement and outer covering of shiny black polyurethane (or polyamide*), pin-pricked for conveying air and compatible gases.
Matte polyurethane cover available on request.
