Hydraulic hose OL8M seriesfor airpolyesterpolyurethane
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic, for air
- Material
- polyester, polyurethane, thermoplastic, aramid
- Applications
- high-pressure, for marine applications
- Other characteristics
- perforated
- Inner diameter
Max.: 32 mm
(1.26 in)Min.: 4 mm
(0.157 in)- Outer diameter
Max.: 45 mm
(1.772 in)Min.: 9.8 mm
(0.386 in)- Pressure
Max.: 700 bar
(10,152.642 psi)Min.: 250 bar
(3,625.943 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description

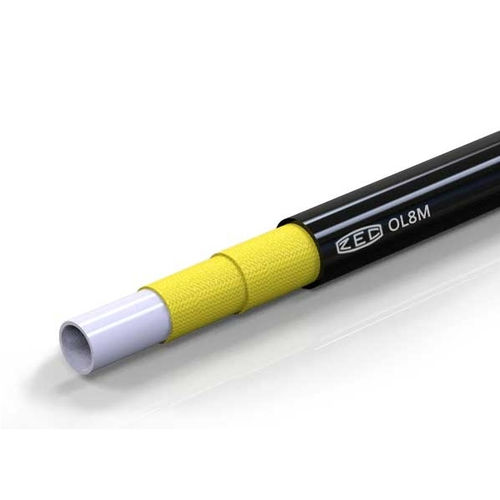

Inner core in thermoplastic polyester, reinforcement Aramid fiber and exterior covering in antiabrasion polyurethane stabilized to UV rays and resistant to hydrolysis and micro-organisms, micro perforated for air and compatible gas.
Applications:
hoses of the OL8M Series have been created for very high pressure hydraulic use for outdoor applications in MARINE environments having a high percentage of humidity.
