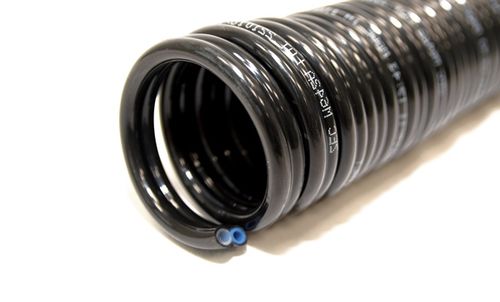

Spiral hose SB seriesfor compressed airpolyurethanepolyamide
Add to favorites
Compare this product
Characteristics
- Use
- for compressed air
- Material
- polyurethane, polyamide, PA12
- Applications
- conveying
- Other characteristics
- double, spiral
- Inner diameter
Max.: 12.5 mm
(0.492 in)Min.: 2 mm
(0.079 in)- Outer diameter
Max.: 15 mm
(0.591 in)Min.: 4 mm
(0.157 in)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
These spirals are made with inner tubes of different color.
The exterior covering is in BLACK POLYURETHANE.
Technical-constructive features:
PA12 PHL twin spirals: plasticized polyamide 12, heat and light stabilized. Reduced moisture absorption.
Black color recommended for outdoor applications.
Applications:
Air conveying in industrial automation and braking systems. Chemicals and hydrocarbons conveying.
