Gas hose CNG seriesfor natural gaspolyurethanethermoplastic
Add to favorites
Compare this product
Characteristics
- Use
- for gas, for natural gas
- Material
- polyurethane, thermoplastic, polyamide
- Applications
- high-pressure, for petrochemical applications
- Other characteristics
- standard
- Inner diameter
Max.: 25.6 mm
(1.008 in)Min.: 6.4 mm
(0.252 in)- Outer diameter
Max.: 38.5 mm
(1.516 in)Min.: 12.5 mm
(0.492 in)- Pressure
345 bar
(5,003.802 psi)- Temperature
Max.: 82 °C
(179.6 °F)Min.: -40 °C
(-40 °F)
Description

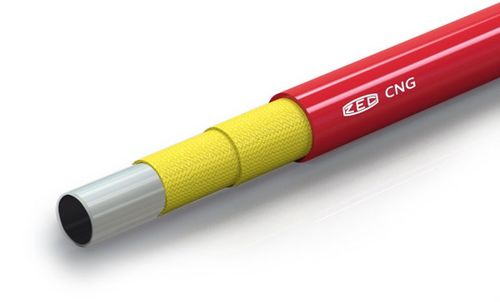

Inner core in electrically conductive polyamide, reinforcement in high toughness textile fiber braid, external cover in abrasion resistant, pinpricked polyurethane, resistant to weathering. Twin-line or multi-line version available on request.
Conductivity:
The electric resistance of the hose is less than 0.12 MΩ/m in accordance with ISO 8031 standard.
Applications:
CNG Series hoses have been developped for the high pressure conduction of CNG.
* "Anti-kinking" solution recommended especially for valve connection and vehicle coupling.
