Foodstuff hose AT7 seriesfor potable waterfor airthermoplastic
Add to favorites
Compare this product
Characteristics
- Use
- for potable water, foodstuff, for air
- Material
- polyester, polyurethane, thermoplastic
- Applications
- high-pressure, FDA, for petrochemical applications, marine
- Other characteristics
- waterproof, perforated
- Inner diameter
Max.: 25.6 mm
(1.008 in)Min.: 3.5 mm
(0.138 in)- Outer diameter
Max.: 33.6 mm
(1.323 in)Min.: 8.5 mm
(0.335 in)- Pressure
Max.: 250 bar
(3,625.943 psi)Min.: 70 bar
(1,015.264 psi)- Temperature
Max.: 82 °C
(179.6 °F)Min.: -40 °C
(-40 °F)
Description

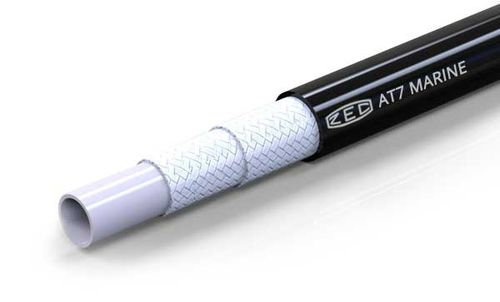

Inner core in thermoplastic polymer suitable to be in contact with food, polyester textile reinforcement and exterior covering in antiabrasion polyurethane stabilized against UV rays and resistant to hydrolysis and microorganisms, micro perforated for air and compatible gases.
Applications:
AT7 hose series have been created for the medium pressure conduction of foodstuff and breathing air, suitable for outdoor applications in MARINE environments having a high percentage of humidity.
For use with high pressure oxygen, please refer to the oxygen service guidelines available on the reserverd area.
