LPG hose GAS5 seriesthermoplasticpolyurethanepolyamide
Add to favorites
Compare this product
Characteristics
- Use
- for LPG
- Material
- polyester, polyurethane, thermoplastic, polyamide
- Applications
- high-pressure
- Other characteristics
- perforated, double
- Inner diameter
13 mm, 19.2 mm, 32 mm
(0.512 in, 0.756 in, 1.26 in)- Outer diameter
13.2 mm, 20.3 mm, 26.5 mm
(0.52 in, 0.799 in, 1.043 in)- Pressure
35 bar
(507.632 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 70 °C
(158 °F)
Description

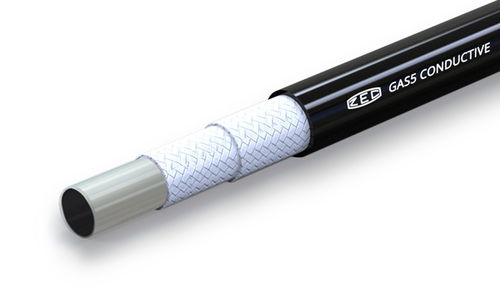

Inner core in electrically conductive polyamide, reinforcement in double polyester fiber braid and external covering in exterior covering in antiabrasion polyurethane and resistant to stabilized hydrolysis for outdoor applications, in environments having high humidity and saline levels, micro perforated, stabilized against UV rays and microorganisms-resistant.
Applications:
hoses of the GAS5 series have been created for medium pressure conduction of LPG in the liquid and gaseous state and for CNG conduction.
Catalogs
No catalogs are available for this product.
See all of ZEC‘s catalogs
