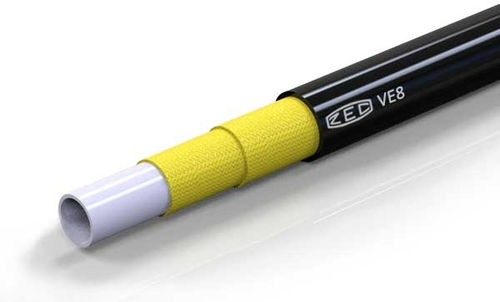

Hydraulic hose VE8 seriespolyurethanethermoplasticpolyamide
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- polyurethane, thermoplastic, polyamide
- Applications
- for marine applications
- Other characteristics
- perforated
- Inner diameter
Max.: 25.6 mm
(1.008 in)Min.: 3.5 mm
(0.138 in)- Outer diameter
Max.: 34.7 mm
(1.366 in)Min.: 7.1 mm
(0.28 in)- Pressure
Max.: 420 bar
(6,091.585 psi)Min.: 145 bar
(2,103.047 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Inner core in polyamide, high toughness textile fiber and exterior covering in antiabrasion polyurethane, micro perforated for the conduction of air and compatible gases.
These hoses are not able to dissipate electrostatic charges that may build up in case non-conductive fluids are conveyed.
Applications:
the VE8 series hoses have been created for the high pressure conduction of Polyols, solvents, paints, air, methanol and all compatible gases.
