LPG hose GAS5A seriesthermoplasticpolyurethanepolyamide
Add to favorites
Compare this product
Characteristics
- Use
- for LPG
- Material
- polyester, polyurethane, thermoplastic, polyamide, PA6
- Applications
- low-pressure
- Other characteristics
- perforated
- Inner diameter
Min.: 4.8 mm
(0.189 in)Max.: 9.5 mm
(0.374 in)- Outer diameter
Min.: 8 mm
(0.315 in)Max.: 14.8 mm
(0.583 in)- Pressure
30 bar, 60 bar
(435.113 psi, 870.226 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Substitute the last 2 numbers (XX) in the code with these: BLACK (00), LIGHT BLUE (02), DARK BLUE (03), RED (05), GREEN (09).
Technical-constructive features

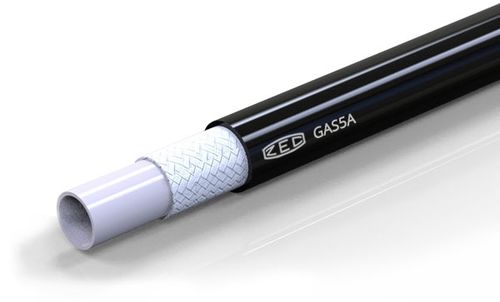

Inner core in POLYAMIDE, reinforcement in single braid TEXTILE FIBER and exterior covering in anti-scratch POLYURETHANE, micro perforated in the following colors: light blue, black, green, dark blue and red.
* External covering in POLYAMIDE micro perforated in the following colors: light blue, black, green, dark blue and red.
Raw materials
POLYAMIDE PA6 ELASTOMERIZED
POLYESTER FIBER BRAID
POLYESTER POLYURETHANE
* POLYAMIDE
Applications
The GAS5A 67R-03 series hoses have been created for the medium pressure conduction of LPG.
