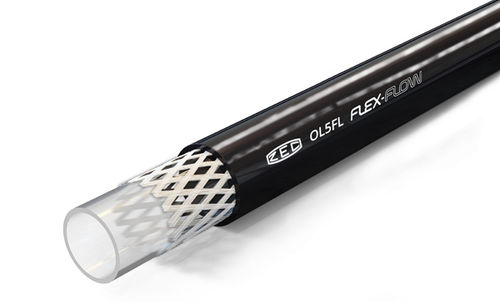

Hydraulic hose OL5FL series

pneumaticthermoplasticpolyurethane

Inner core in polyurethane, reinforcement with one high tensile fiber braid, outside cover in abrasion resistant polyurethane, UVstabilized, resistant to ozone, microorganisms and hydrolysis, suitable for outdoor applications in wet and saline environments. Permanently welded with the inner layer. Applications: The OL5FL Flex-Flow series hoses are ideal for pneumatic applications and hydraulic return lines, where flexibility and reduced bending radius are required. Compressed air circuits, hydraulics and lubricating oil conductions, cooling. These hoses are available in standard “Multi-Purpose” version, in orange “Non-Conductive” version (with less than 50 μA leakage under 250000 V/m acc. to SAE J517), and also in “Self-Extinguishing” version (grade V0 acc. to UL94).
