Hydraulic hose OL7M seriesfor airthermoplasticpolyurethane
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic, for air
- Material
- polyester, polyurethane, thermoplastic
- Applications
- marine
- Other characteristics
- perforated
- Inner diameter
Min.: 4.8 mm
(0.189 in)Max.: 19.2 mm
(0.756 in)- Outer diameter
Min.: 10.5 mm
(0.413 in)Max.: 31.4 mm
(1.236 in)- Pressure
Min.: 160 bar
(2,320.604 psi)Max.: 250 bar
(3,625.943 psi)- Temperature
Min.: -54 °C
(-65.2 °F)Max.: 100 °C
(212 °F)

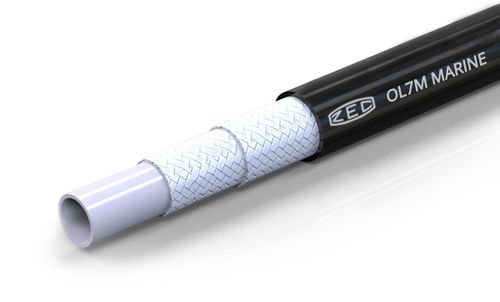

Description
Internal core in thermoplastic polyester, reinforcement with two polyester fiber braids, exterior covering in antiabrasion polyurethane stabilized to UV rays and resistant to hydrolysis and micro-organisms, micro perforated for air and compatible gas.
Applications:
The OL7M MARINE series hoses have been created for hydraulic high pressure applications in wet and saline environments, where extreme temperature variations might occur. This type of hose also offers improved flexibility at low temperatures and it is particularly recommended for utilization on operating machines and lift trucks working at low temperatures.
