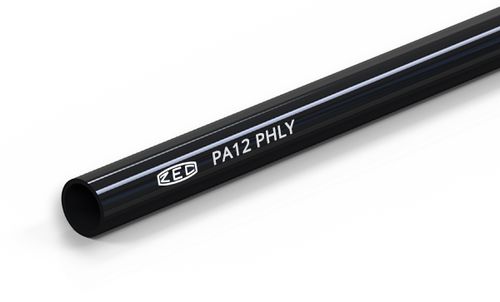

Water hose PHLYfor paintfor LPGfor air
Add to favorites
Compare this product
Characteristics
- Use
- for water, for paint, for LPG, for air, for oil
- Material
- polyamide
- Applications
- low-pressure, lubrication
- Norms
- DIN
- Inner diameter
Max.: 8 mm
(0.315 in)Min.: 2 mm
(0.079 in)- Outer diameter
Max.: 10 mm
(0.394 in)Min.: 4 mm
(0.157 in)- Pressure
Max.: 68 bar
(986.257 psi)Min.: 23 bar
(333.587 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
DIN 74324 AND 73378 STANDARDS
LOW PRESSURE POLYAMIDE TUBING
Colour:
Black. Other colours available on request.
Specifications:
DIN 74324 and 73378 standards (* DIN 73378 only).
