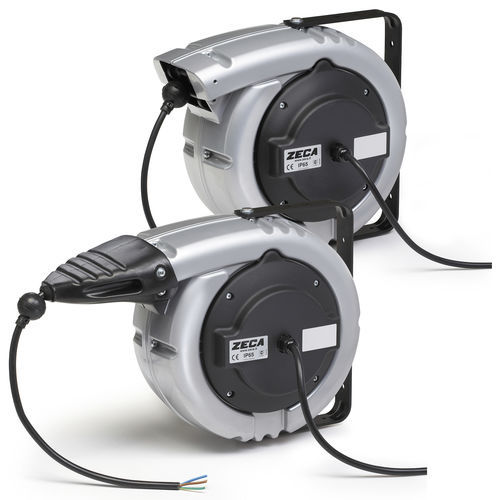

Cable reel 6000 PRC/PRL IP65self-retractingswivelingfully-enclosed
Add to favorites
Compare this product
Characteristics
- Type
- cable
- Drive mechanism
- self-retracting
- Configuration
- swiveling, fully-enclosed, double
- Reel material
- aluminum, cast, brass
- Hose/cable length
Max.: 26 m
(85'03" )Min.: 10 m
(32'09" )- Diameter
Max.: 13.5 µm
Min.: 5.5 µm
Description
Die-cast aluminum structure painted with epoxy powders.
Roller cable guide mouth.
Cable stop device with rack that can be inserted every 50 cm. All cable reels are supplied with the cable stop device disconnected. Easily insertable.
Double ground contact.
Collector with brass rings and special brushes with very low voltage drop.
Collector insulation voltage 2.5 KV.
Sliding contacts with collector ring and brushes.
Degree of protection IP65.
Ambient operating temperature -5 ° C / + 50 ° C.
Supplied with 2 m long power cable section.
PRC to PRL transformation kit
Optional device to make the hose reel fixed instead of swiveling. Indispensable for ceiling application.
Essential for ceiling applications.
Recommended for applications where the cable is not pulled parallel to the cable reel entry
