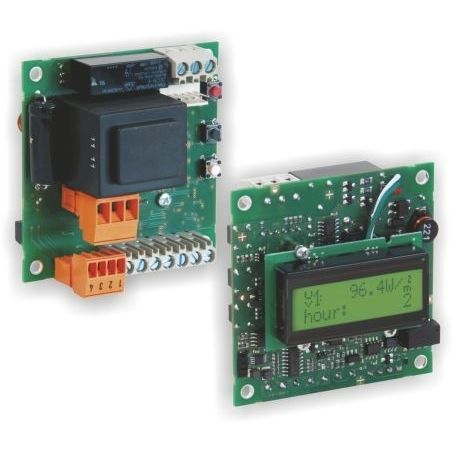

UV detector PRO16

digitalphotodiode4-20 mA

for use as UV-C monitoring system (displaying UV values in "W/m²", "mW/cm²" or "%") can be connected with - up to two D-SiC UV-sensors with digital interface - or one SiC-I UV-sensor with 4-20 mA signal output - or one SiC UV-sensor with photodiode single hour counter for operation hours and lamp replacement indication switchcycle counter system status indication: - multicolor 2-line LCD - green, red and yellow LCD backlight system status forwarding: - potential free relay contacts (UV alarm) - UV value forwarding to PLC via 4-20 mA signal ready for certification according to DVGW W294 and ÖNORM M5873
