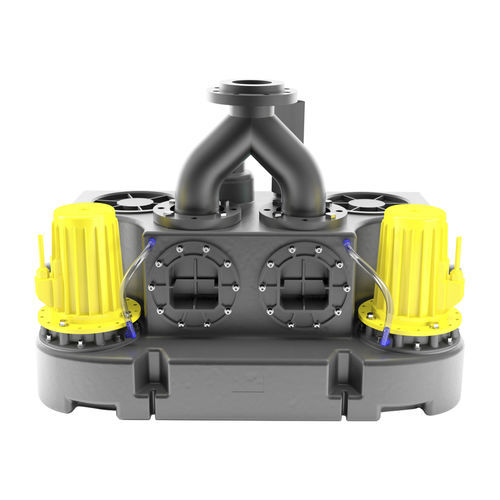

Sewage lifting unit Kompaktboy Duplex

sewage lifting unit
sewage lifting unit
sewage lifting unit
Add to favorites
Compare this product


Description

polyethylene container with 150 litres capacity and up to 80 litres switching volume vortex pumps with high efficiency and low operation noise mechanical seal and shaft seal with intermediate oil chamber inlets: 2 x lateral DN 100, 1 x lateral DN 50, 1 x back DN 100 and 1 x top DN 50/100 additional connections 1 ½“ for manual diaphragm pump air vent DN 70 (Ø 75mm) operation temperature max. 55°C operating mode S3 - 25% protection grade IP 68 - fully submersible Application removal of domestic sewage out of single- or multi family houses in public institutions, where the disposal of sewage must not be interrupted above-ground installation in rooms protected from frost below the backwash level Scope of delivery pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control with integrated non-return valves DN 100 (Kompaktboy Duplex 3,0-2P with external cast iron non-return valves) Y-pipe DN 100/100/100 connection flange piece DN 100 for pressure pipe (DN 80 optional) flexible connection with tension clamps for pressure pipe and ventilation pipe incl. ZPS2: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, op
