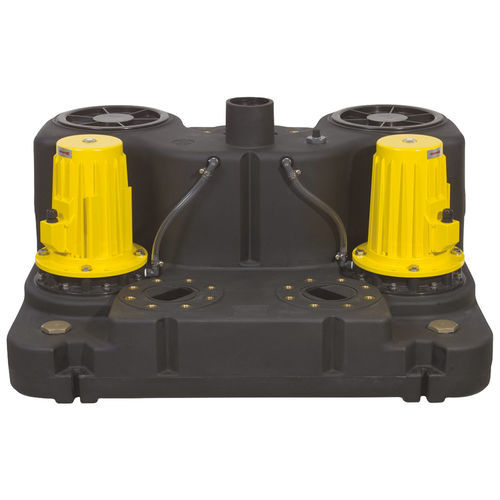

polyethylene container with 200 litres capacity and up to 100 litres switching volume
vortex pumps with high efficiency
mechanical seal and shaft seal with intermediate oil chamber
inlets: 2 x lateral DN 100, 1 x top DN 100/DN 150
additional connections 1 ½“ for manual diaphragm pump
air vent DN 100 (Ø 110mm)
operation temperature max. 55°C
operating mode S3 - 25%
protection grade IP 68 - fully submersible
Application
pumping of domestic sewage from basement apartments, single-family houses or apartment buildings
above-ground installation in frost-free rooms below the backflow level
Scope of delivery
pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control
incl. 2 non-return valves DN 100
Y-pipe DN 100/100/100
connection flange piece DN 100 for pressure pipe
flexible connection with tension clamps for pressure pipe and ventilation pipe
incl. ZPS2: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation
