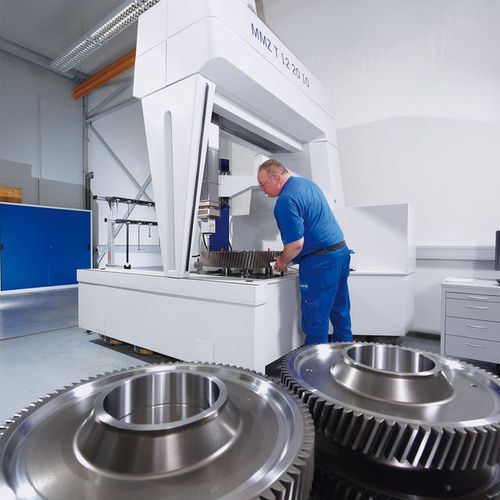

Bridge coordinate measuring machine ZEISS MMZ T

for large partsfor gearsfor quality control

With a measuring range of up to 14.8 m3, the ZEISS MMZ T offers the largest measuring range from amongst the table bridge-type measuring machines. For example: it enables the highly precise measurement of large gears directly on the shop floor. Features The open design enables easy loading with a crane. The design of the machine allows for workpieces weighing up to ten tons. Safety for the operator and the machine Kink protection on the ram to protect the sensor/operator Optical ram protection to prevent downtimes following a collision Safety position for the bridge to ensure safe loading of the coordinate measuring machine with large workpieces Enlarged measuring performance REACH CFX 3 MMZ stylus extensions for measuring very deep boreholes (1,200mm) Rotary tables installed in the base to optimally use the measuring range Temperature compensation gradients for the axes to selectively capture temperature differences Measure heavy workpieces efficiently Possible to measure workpieces of up to ten tons without a loss of accuracy Integrated vibration insulation to prevent the need to construct an expensive foundation Bearing technology without compressed air to minimize operating costs Robust and stable over the long term Insensitive to dusty and oily air Resistant to rough environmental conditions for reduced demands on the measuring room Large bearing clearances and a stable bridge design for exceptional scanning performance
