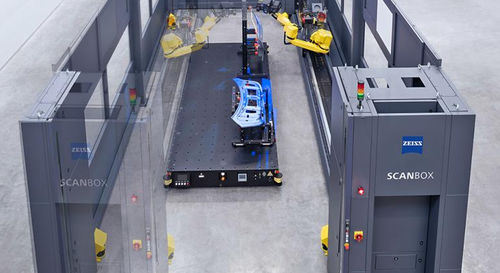

3D measuring machine ATOS ScanBox 7

automatedparts

Automated 3D metrology for car body construction, press shops and try-out toolmaking: With ATOS ScanBox Series 7, you can digitize and inspect large and heavy parts such as automotive side panels and hang-on parts up to ten meters in size. Welded assemblies for transportation, mechanical engineering and aircraft construction can also be measured. The area-based measurement data allows the evaluation of hole pattern, trim and character lines. Higher throughput thanks to up to two working areas Automated and near-process dimension analysis 8-axis kinematics for flexible sensor positioning Eight degrees of freedom for more flexible sensor positioning Due to the 8-axis kinematics - a combination of horizontal rail, vertical lift and an articulated robot - the full-field measurements of large and heavy parts is easy. Thanks to the eight degrees of freedom, the ATOS sensor is very flexible in its positioning and captures 3D data of the smallest details in the shortest possible time. One system - adaptable to your needs For even higher throughput, you can expand ATOS ScanBox 7160 with an additional rotation table working area as required. An upgrade to ATOS ScanBox Series 8 is also possible without any problems due to standardized construction components. Flexible loading options Optimized planning for efficient workflows ATOS ScanBox Series 7 can be loaded with a driverless sandwich panel transport system including track system, drive computer and safety technology. Alternatively, the parts can be transported into the respective working areas using a transport cart or lifting truck, crane or forklift truck.
