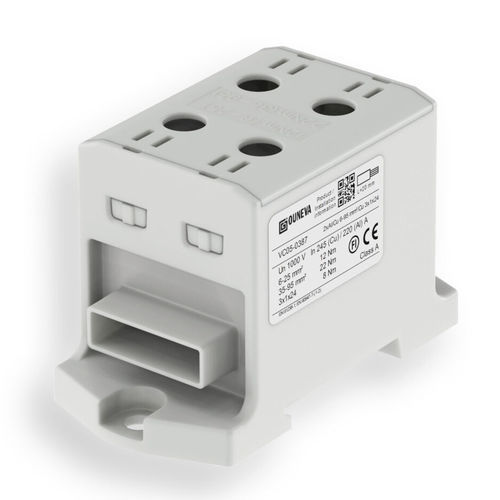

DIN rail-mounted terminal block VC05-0387

screw connectioninsulatedpower

Terminal blocks provide the electrical connection between two flexible or rigid conductors. They can be used to connect several conductors at a single connection point or to supply power to an electrical cabinet. Our tinned aluminium terminal blocks are compatible with aluminium and copper cables. Thanks to their compact format, these products fit neatly into a small footprint. They are easily installed on a DIN rail using a clip. Our self-extinguishing terminals meet the UL94-V0 standard, have UL approval and are IP 20 certified. This model is particularly suitable for connection in the electrical panel with an insulated flexible busbar or a copper busbar. An aluminium and copper terminal While most terminals on the market only accept aluminium or copper conductors, we have terminals that accept both materials. Designed in tinned aluminium, our terminal blocks accommodate both incoming and outgoing aluminium and copper cables. Connect several cables per phase This power terminal block can be used to connect a large cross-section aluminium cable to a smaller cross-section copper cable. The triple power terminal block can also be used to connect an input with an aluminium or copper cable from the jobsite. It can also be used to connect from 2 to 5 aluminium or copper cables to other enclosures or panels. Quickly view tightening torque The tightening torque recommended by the manufacturer is marked on the front of the terminal. This information guarantees that the product will be installed in compliance with safety standards.
