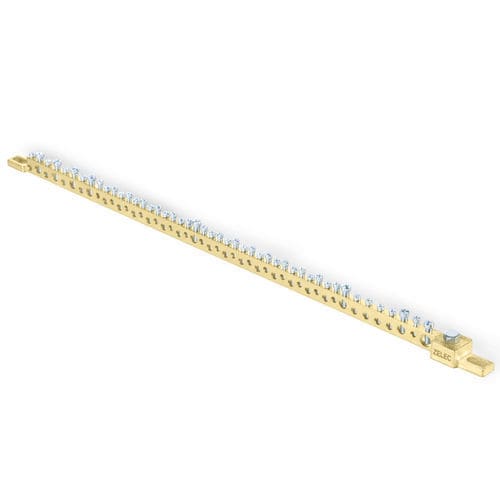

Grounding busbar BDT48

copperbrassgalvanised steel

48 connections earth bar L 461.5 mm Earthing bars are used to connect several earth conductors in an electrical switchboard. Zelec earth bars have been designed with two objectives in mind: optimise product efficiency and simplify connection to the installation. To achieve this, the earthing bars are fitted with a dedicated terminal for connecting a lug up to 50 mm². They are also suitable for connecting cables of different diameters, thanks to the holes of varying sizes which make it easier to fit the ferrules. The larger and smaller screw heads make it easier to visually identify larger diameter holes. The earthing bars are made from high-conductivity brass, guaranteeing superior quality. They are supplied with a complete kit of M5 and M6 universal screws for mounting on chassis, copper bars or with spacers. The Zelec range is compatible with most electrical cabinets and boxes on the market, including those manufactured by Schneider Electric, Legrand, ABB and Siemens. Patented terminal The Zelec earth bar has a dedicated terminal for connecting a lug of up to 50 mm². This terminal, which is wider than the earth leakage collector, provides an optimum contact surface and thus ensures ideal electrical contact. The design of the Zelec earth bar has been patented with the Institut National de la Propriété Industrielle (France’s national intellectual property institute). Product certified by Bureau Veritas & LCIE The Zelec earthing terminals has been certified by Bureau Veritas following a series of tests, confirming its quality and longevity.
