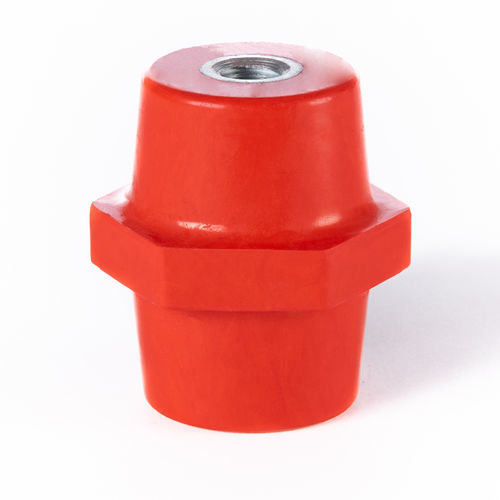

Fiberglass insulator ISOH1260

Female female H 60 M12 hexagonal insulator Hexagonal insulators are used to electrically and mechanically insulate live conductors. Our range includes several threads and heights ranging from 16 to 70 mm with two female/female galvanised steel threaded inserts. These top-of-the-range insulators are among the toughest on the market. They are made from fibreglass-reinforced polyester, giving them unrivalled mechanical and electrical strength. They are also self-extinguishing in accordance with the UL94-V0 standard, glow-wire resistant to 960°C, halogen-free and resistant to temperatures ranging from -40°C to +135°. Quality and safety central to our concerns Our range of insulators is made from fibreglass-reinforced polyester. These products are tested to ensure optimum tensile, compressive and flexural strength. Halogen-free and self-extinguishing in accordance with the UL94V0 standard, they are glow-wire resistant to 960°C. Perfectly design your installation We can help you design your project. Depending on the desired short-circuit current and the diameter of the busbar, our sizing guide will tell you exactly how many insulators you need to use and the maximum distance between them.
