Multifunction measuring instrument MFM-NAUTIL950voltageTDSfrequency
Add to favorites
Compare this product
Characteristics
- Measured value
- voltage, TDS, frequency, reactive power, apparent power, active power, power factor, electrical parameters
- Technology
- CT
- Applications
- industrial, multifunction, for control
- Configuration
- wall-mounted
- Other characteristics
- with display, three-phase, single-phase
Description
96 x 96 via CT Mobdus RS485, neutral measured multifonction meter NAUTIL950
Multifunction meters displays all the installation’s electrical parameters.

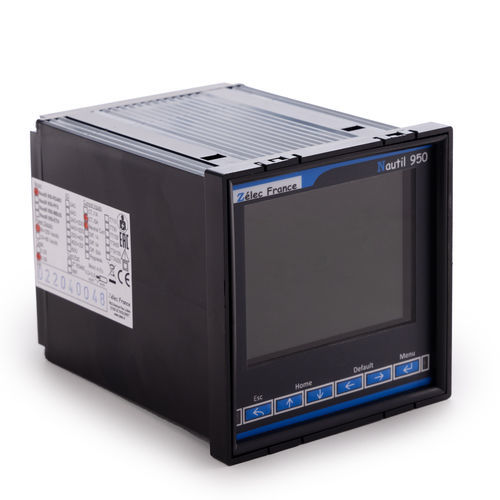

The Nautil 950 multifunction meter displays all the network’s electrical characteristics. It also enables:
monitoring of electricity consumption for energy efficiency applications,
remote monitoring of parameters via an automaton or supervision system.
The Nautil 950 control unit is intuitive to use. All parameters are easily accessible via the direct access keys on the front of the device. The bar graphs show you the load on your installation at a glance.
This multifunction meter communicates via Modbus RS485 or pulse and is suitable for all industrial and tertiary installations. It is generally installed on main LV boards, TDs or TGSs.
One product, multiple communications
As standard, the control unit is equipped with a pulse output and a Modbus RS485 output.
The pulse output allows you to report energy consumption to an automaton. For complete analysis and supervision of your electrical installation, Modbus RS485 communication makes all the network parameters accessible via a BMS.
