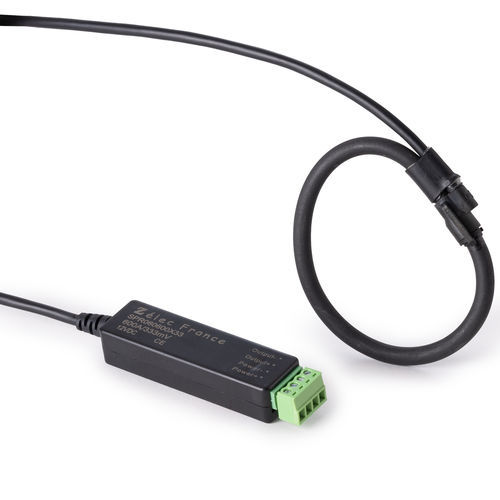

Rogowski coil current sensor SPR060600X33

plug-inDCflexible

600 A/333 mV Ø60 mm 12 Vdc converter Rogowski loop Rogowski loops are a new generation of flexible current transformers that allow users to easily pass the product around the cable or bar, even in confined spaces. Rogowski loops are particularly suitable for installations with limited accessibility or when switching off the system is not possible. Because of their design, they can be installed while the installation is live. Our wide range of Rogowski loops allows measurements from 60 to 4800 A. Equipped with a 333-mV converter, the Rogowski loop offers an accuracy class of 1% from 10 to 120% of rated intensity. Flexibility and ease of use Unlike traditional current transformers, the Rogowski loop is flexible and easily adapts to different busbar or cable diameters. It is lightweight and compact, making it easy to install and use in confined spaces. Flexibility The Rogowski loop offers a wide measuring range from 60 to 4800 A depending on the model, ideal for a variety of industrial and tertiary applications. Precision The Rogowski loop offers exceptional accuracy, 1%, from 10 to 120% of the load. Thanks to its unique design and features, it gives you reliable, accurate measurements.
