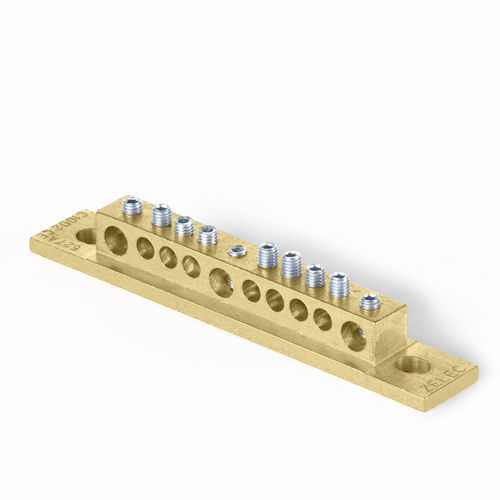

Electrical power supply connector C10D2

screw-inlow-voltagebrass

7 x 10 mm² outputs and 3 x 16 mm² outputs 627 A 8.8 class screws narrow busbar connector Narrow power connectors enable the capacity of a busbar to be increased. They are designed to be fixed to perforated or threaded copper bars. Made from high-conductivity brass, these connectors are quick and easy to install. The C10D2 connector has 7 x 10 mm² connections and 3 x 16 mm² connections. It packs its 10 connections into a compact footprint just 120 mm long and 20 mm wide. The product can withstand up to 627 A and ensures reliable electrical connections thanks to its 8.8 class screws. It is ideal for tertiary and industrial applications. Product certified by Bureau Veritas Our product has been approved by the Laboratoire Central des Industries Electriques – LCIE (private electricity technical testing centre) in accordance with the 2004 NF EN 60998-2-1 standard for “Connection devices for low-voltage circuits”. This certification guarantees the quality and reliability of the product (strength, quality of screws, heating). The perfect size for busbars This “narrow” 20-mm wide conductor has been developed to for use specifically with your 20 x 5 mm busbars and bigger. Its size ensures that the spacing between phases is respected to avoid short circuits. Increase the number of connections while reducing space requirements With its 100 mm centre distance and oblong mounting, the connector can be used with the most commonly used copper bars: threaded or perforated. This product is also compatible with solid bars.
