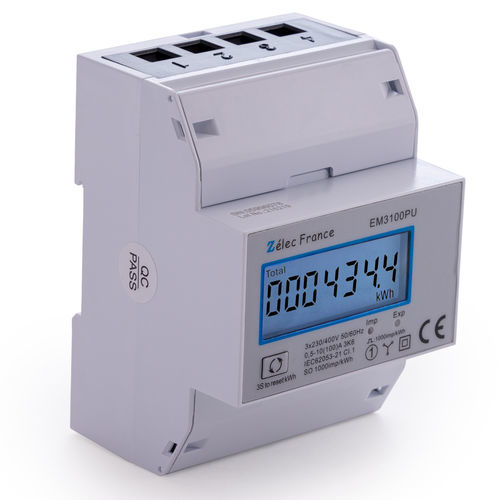

Three-phase electric energy meter EM3100PU

DIN railRS-48550 Hz

100 A 4 modules pulse direct 3 phase + N energy meter Installed upstream of an electrical circuit, energy meters are used to identify and monitor an installation’s electricity consumption. Our wide range of products can be used for metering and measuring directly connected single-phase, three-phase or four-phase circuits of up to 100 A and up to 6000 A when connected via current transformers. The EM3100PU meter is an electrical measuring device operating on a 3 phase +N network. It can be used to read the active energy and the active power consumed directly on the meter or to send this information to a PLC. It is equipped with a reset function for partial counting. This direct-connection meter meters up to 100 A. This product is also available with RS485 Modbus communication and/or in a MID version. Compact products Aware that space is a key factor in the design of your cabinets, we have developed a compact range. Our 40 A meter is only 17.5 mm wide, i.e. 1 module. Secure meter Our meters are supplied with terminal covers to prevent any risk of electric shock. These terminal covers can also be sealed to prevent fraud.
