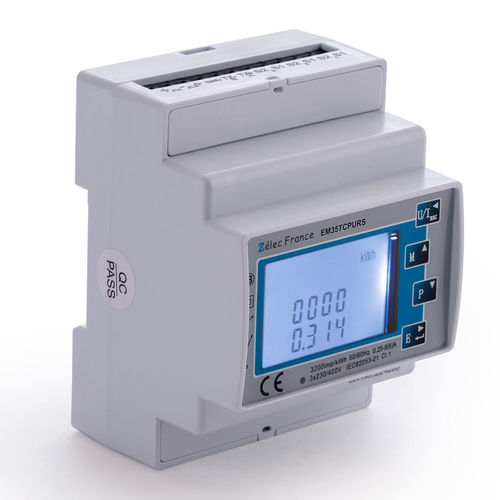

Three-phase electric energy meter EM35TCPURS

single-phaseDIN railRS-485

5 A CT 4 modules Modbus RS485 multimesurement 3 phase + N energy meter Installed upstream of an electrical circuit, energy meters are used to identify and monitor an electrical consumption network. Our wide range of products can be used for metering and measuring directly connected single-phase, three-phase or four-phase circuits of up to 100 A and up to 6000 A when connected via current transformers. The EM35TCPURS meter is an electrical measuring device operating on a tri-phase and four-phase network with RS485 Modbus communication and two pulse outputs. It has been designed to be able to read all the electrical parameters on the meter display. the Modbus communication allow also to monitoring all the electrical parameters on a PLC or BMS. This current transformer (CT)-connected meter provides metering from 5 to 6000 A. This product is also available in a MID version. The same product for every type of communication The EM35TCPUPURS is fitted as standard with two pulse outputs and RTU Modbus communication. A multi-measurement meter Our range of Modbus RS485 communicating meters can undertake a complete analysis of your network. As well as active energy, the meter also displays voltage, intensity, active, reactive and apparent power, power factor and frequency. Compact products Aware that space is a key factor in the design of your cabinets, we have developed a compact range. Our CT meter is only 72 mm wide, i.e. 4 modular width. Secure meter Our meters are supplied with terminal covers to prevent any risk of electric shock. These terminal covers can also be sealed to prevent fraud.
